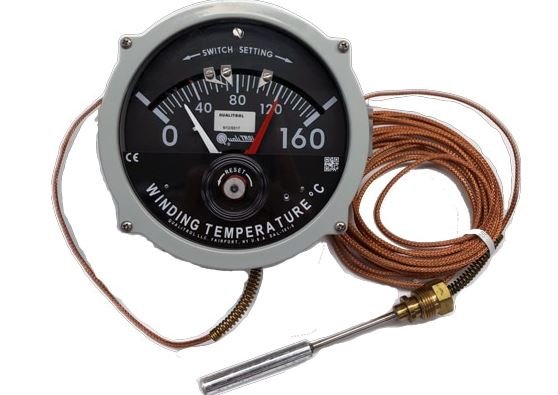

Qualitrol 104/TR6000

Manufacturer Qualitrol
Model 104/TR6000

Capillary based, remote indicating, mechanical thermometer. Features bourdon tube measurement with reset-able maximum pointer and up to 4 switches for temperature related alarms and control signals. Electronic outputs also available for integration into SCADA and remote monitoring systems.

  • Bourdon tube based capillary measurement with reset-able maximum pointer
  • Up to 2 user adjustable switches (contacts) and one additional fixed switch for control and alarms
  • 5 inch (130mm) dial face with an angular dial span of 120° for easy viewing
  • Low profile probe can be dressed for use in dry type transformers
  • Stainless steel bezel ring and probe resist corrosion
  • UV stabilized polycarbonate or glass lens options help prevent discoloration of dial face and lens for life-long readability
  • Available with up to 4 user-adjustable switches featuring lock down screws to reduce the effects of vibration and inhibit tampering
